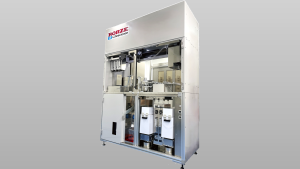

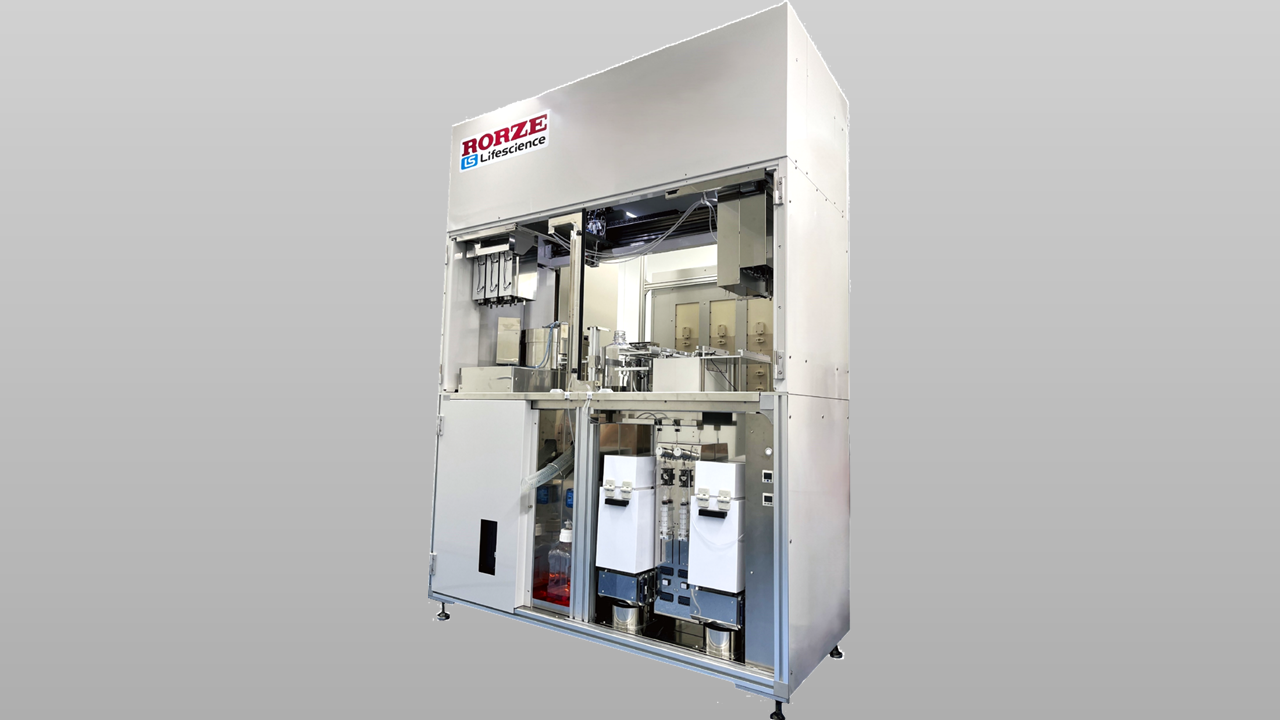

CellCradle
CellCradle
Overview
Integrated Cell Culture System
CellCradle is an innovative device that automates the medium exchange and cell harvesting processes for adherent cells, supporting the realization of laboratory automation.
Configuration：Dispensers, Aspirator, Pipettor, Medium Cooling Unit, Decapper, and Centrifuge Tube Spinner.
We also provide tailored system integration to meet your specific needs, offering the optimal cell culture solutions.
Specifications
| External Dimensions (W × D × H) (mm) |
1,505 ｘ 665 ｘ 2,050 |
|
|---|---|---|
| Weight (approx.) | 200 kg | |
| Internal Environment | Cleanliness: Equivalent to ISO Class 5 | |
| Target Cell | Adherent Cells | |
| Automated Processes | Seeding, Medium Exchange, Harvesting | |
| Compatible Culture Vessels | T225 Flask | |
| Culture Vessel Stage Capacity | Up to 2 plates Inclination range: -5° to 95° |
|
| Medium Exchange Module |
Channel Number | 2 Channel |
| Medium Storage Temperature | 2～8℃ | |
| Dispense Temperature | RT. ＋7～40℃ | |
| Dispense Accuracy | １％CV (at 10 mL) | |
| Aspiration Speed | 0.1～2 mL/s | |
| Spinner Module |
Compatible Vessels | 1 x 50 ml centrifuge tube |
| Maximum spin force (approx.) | 2000 rpm | |
| Balance | Balance weight (automatic adjustment) |
|
Video
For other requests, please contact us.
*The contents may be changed without notice.
