Overview

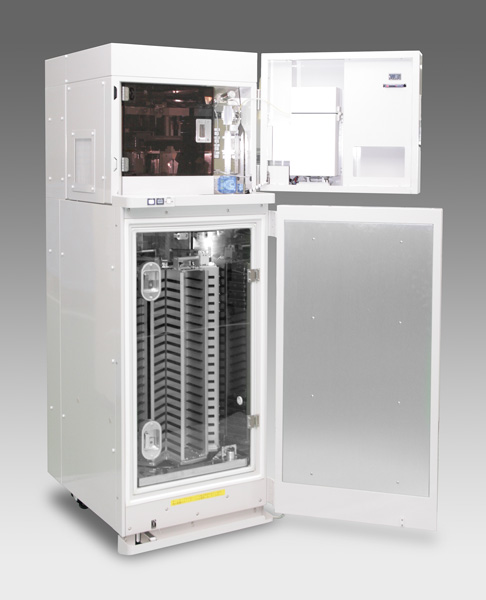

Integrated Cell Culture System with automated medium exchange function
Configuration: CO₂ incubator Module, Medium Exchange Module, Transfer Robot, CellKeeper Scheduler

CO₂ Incubator Module

• Supports stable culture of up to 120 dishes/plates with a carousel turntable.
• Maintains high stability by separating electrical components and drive systems from the high-temperature, high-humidity chamber.
• Provides consistent temperature control through direct heating technology.

Medium Exchange Module

• Accommodate a 2 L medium bottle.
• The medium storage space is refrigerated, with a heating mechanism to warm the medium before dispensing.
• Utilizes disposable tips for medium aspiration to prevent cross-contamination.
• Capable of adjusting aspiration volume.
  Supports medium change for 16 or more dishes (Φ100 mm) per hour.

Transfer Robot

• Dishes/Plates are supported from below by the robot arm to prevent dropping during transportation.
• Collision prevention is ensured by detection sensors at the robot arm’s tip and stocking sensors.
• The CO₂ incubator employs innovative shutter mechanisms for plate loading and unloading.

CellKeeper Scheduler

• Enables scheduling on a dish or plate basis.
• Controls schedules and manages parameters including medium type, exchange volume, and dispensing rate.
• Easy operation via the front touch panel.

Specifications

Product Number		iCCS-120-ME1-002
External Dimensions (W × D × H) (mm) *Excluding protrusions		620 x 882 x 1900
Weight (approx.)		350 kg
Incubator Module	Compatible Vessel Type	6 well plate-96 well plate Φ100 mm dish* Φ60 mm dish*
	Storage Capacity	Φ100 mm dish*: 120 ea. Φ60 mm dish*: 240 ea. SBS standard plate: 120 ea.
	Temperature	RT. + 7-50 ℃
	CO₂ Concentration	0-20% (at 5% ± 0.5%)
Medium Exchange Module	Medium Exchange Throughput	1-2 minutes /Φ100 mm dish*
	Channel Number	1 Channel
	Medium Storage Temperature	2-8 ℃
	Dispense Temperature	+ 7-40 ℃
	Dispense Speed	0.1-1 mL/s
	Dispense Volume	0.1-50 mL
	Dispense Accuracy	1% CV (at 10 mL)
	Aspiration Speed	0.1-2 mL/s
	SBS plate medium exchangeable area	Accessible 2/3 of all well (For a 6 well plate, medium exchange for 4 wells)

*Special adapters are required when using dishes.

RLS Products Catalog

Video

CellKeeper 120

Option List

• Low Oxygen Mode
• Dish/Plate Transfer Table (for integration)
• Barcode Reader
• External Control Laptop
• Stainless Steel Construction

​For other requests, please contact us.

Consumables List

Consumables List

*The contents may be changed without notice.
