Overview

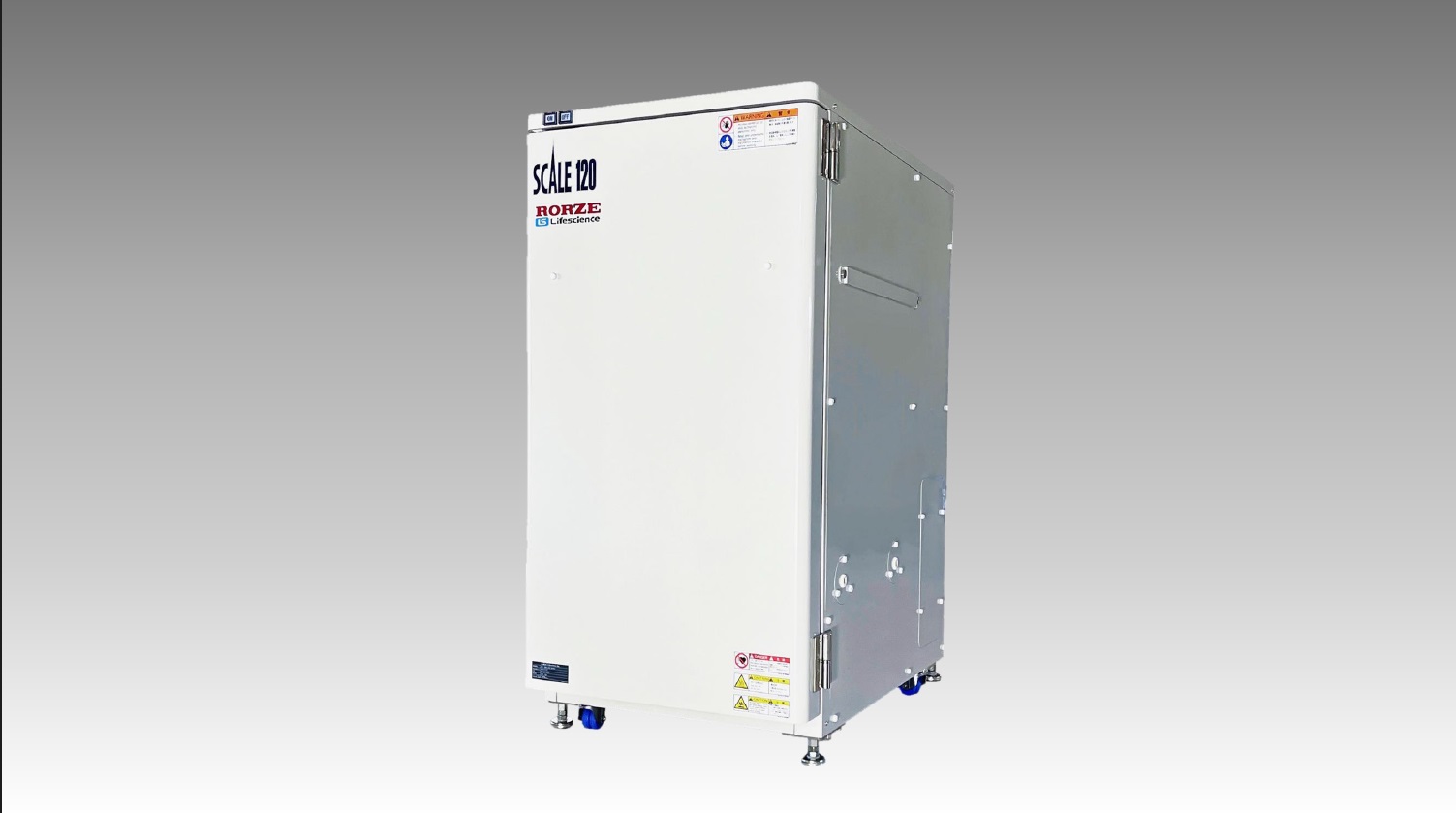

CO₂ incubator integrated with a transfer robot.

• Supports stable culture of up to 120 dishes/plates with a carousel turntable.
• Maintains high stability by separating electrical components and drive systems from the high-temperature, high-humidity chamber.
• Provides consistent temperature control through direct heating technology.
• Enables the removal of internal components from the chamber for effortless cleaning.
• Minimizes changes in the internal environment during plate loading and unloading with an innovative shutter mechanism.

Specifications

Product Number	iPIC-2006-01R-RSIF2
External Dimensions (W × D × H) (mm) *Excluding protrusions	620 x 911 x 1260
Weight (approx.)	250 kg
Compatible Vessel Type	SBS standard plate Φ100 mm dish* Φ60 mm dish*
Storage Capacity	SBS standard plate: 120 ea. Φ100 mm dish*: 120 ea. Φ60 mm dish*: 240 ea.
Temperature	RT. + 7-50℃
CO₂ Concentration	0-20％ (at 5% ± 0.5％)
Capacity	230 L

*Special adapters are required when using dishes.

RLS Products Catalog

SCALE120 Video

Option List

• Low Oxygen Mode
• Dish/Plate Transfer Table (for integration)
• Barcode Reader
• External Control Laptop
• Stainless Steel Construction

For other requests, please contact us.

Consumables List

10 cm adapter	iPIC-2006-OP-AP100
6 cm adapter	iPIC-2006-OP-AP60-01
6 cm x2 adapter	iPIC-2006-OP-AP60-02

*The contents may be changed without notice.
