Overview

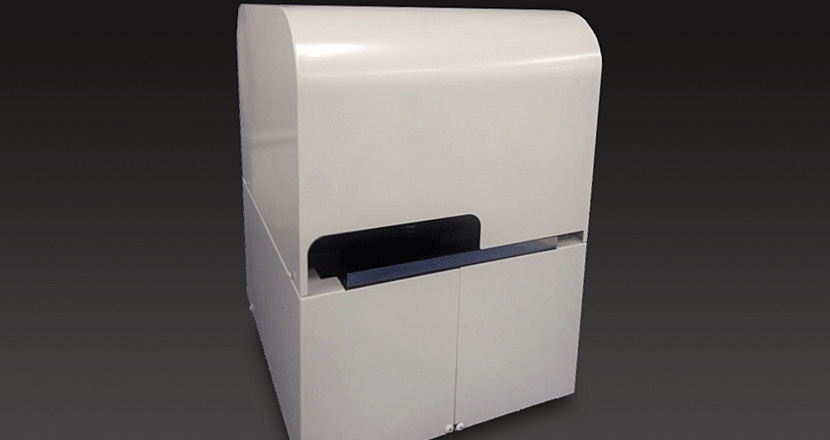

Cellshot is an observation system that automatically captures and records microscope images of cell cultures using dishes or multi-well plates.
-
- Utilizes a tiling function for batch observation of entire wells with synthesized images.
- Allows observation at different magnifications for each position.
- Integrates seamlessly with various equipment, including the SCALE series and CellKeeper series.
- Features a high-precision XY stage for precise observation position control.
Specifications
| Product Number | iCWS-N02-001 |
|---|---|
| External Dimensions (W × D × H) (mm) *Excluding protrusions |
290 x 348 x 460 |
| Weight (approx.) | 25 kg |
| Optical System | Inverted phase contrast microscope |
| Light Source | Red LED |
| Magnification (approx.) | x 1.6 (4.24 x 3.39 mm), x 4.0 (1.69 x 1.36 mm) |
| Camera | High-sensitivity 1.31-megapixel monochrome camera Effective pixel count: 1,280×1,024 pixels |
| Focus | Manual/Auto |
| Image Storage Format | BMP, TIFF, JPEG |
Option List
Stainless Steel Construction
*The contents may be changed without notice.
