Booth

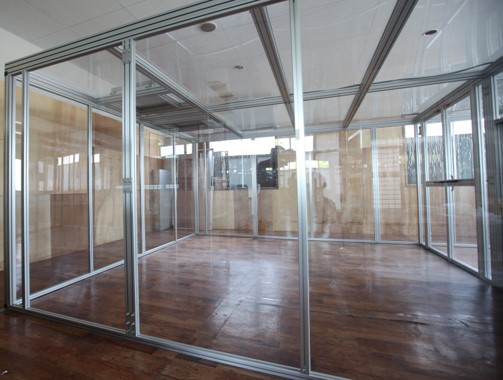

MIU-LITE
Overview
- Easy to install in an existing building.
- Suitable for installation in existing buildings.
- Preventing exposure of air in the booth.
| External Dimensions (W × D × H) (mm) *Excluding protrusions |
5,500 × 4,000 × 2,380 (Indoor ceiling height 2,120) |
|---|---|
| Air Circulation Rate | 20 cycles/h |
| Inside Pressure | below -5 Pa |
| Airflow | One-pass system (Turbulent flow) |
| Fan Filter Unit (FFU) | Two units for supply air Two units for exhaust air |
| Nosie Level | Below 60 dB (Reference value) |
| Material | Aluminum, Static-dissipative vinyl |
| Installation Time | 3-6 h/units |
*The contents may be changed without notice.
