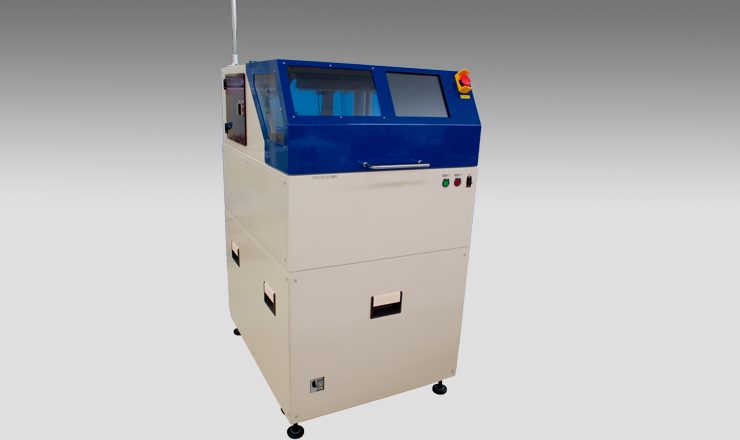

Automatic Weighing System
Automatic Weighing System（AWS）
Overview
The Auto Weighing System is an automated weighing system for mini-tube containers used in screening.
- Measures the weight of each tube when placed in SBS standard racks, with options for 96, 48, or 24 tubes.
- Calculates net weight by measuring the tare weight before adding compounds and subtracting it from the post-addition weight.
- Increases throughput by lifting tubes from the bottom for weight measurement.
- Manages IDs by reading 1D barcodes on the rack side and 2D barcodes on the tube bottoms.
- Compact design intended for integration with dispensing systems and compound preparation devices.
Specifications
| Product Number | iCoMARS-TS-X002 |
|---|---|
| External Dimensions (W × D × H) (mm) *Excluding protrusions |
700 x 1000 x 1600 |
| Weight (approx.) | 350 kg |
| Accuracy | 1 mg (resolution: 0.1 mg) |
| Throughput | Within 10 s/tube |
| Capacity | 8 SBS racks (Jacket tube) |
*The contents may be changed without notice.
